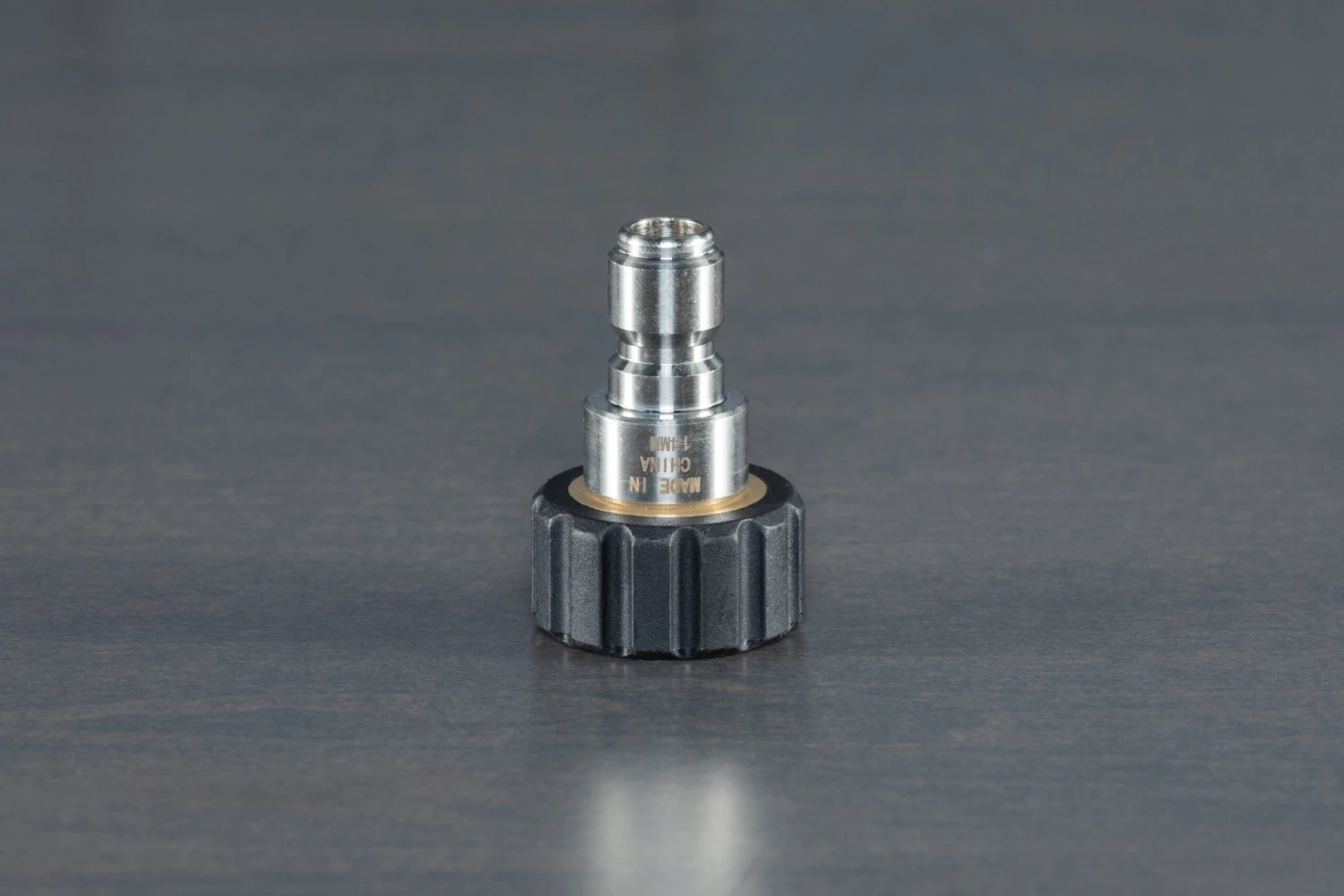

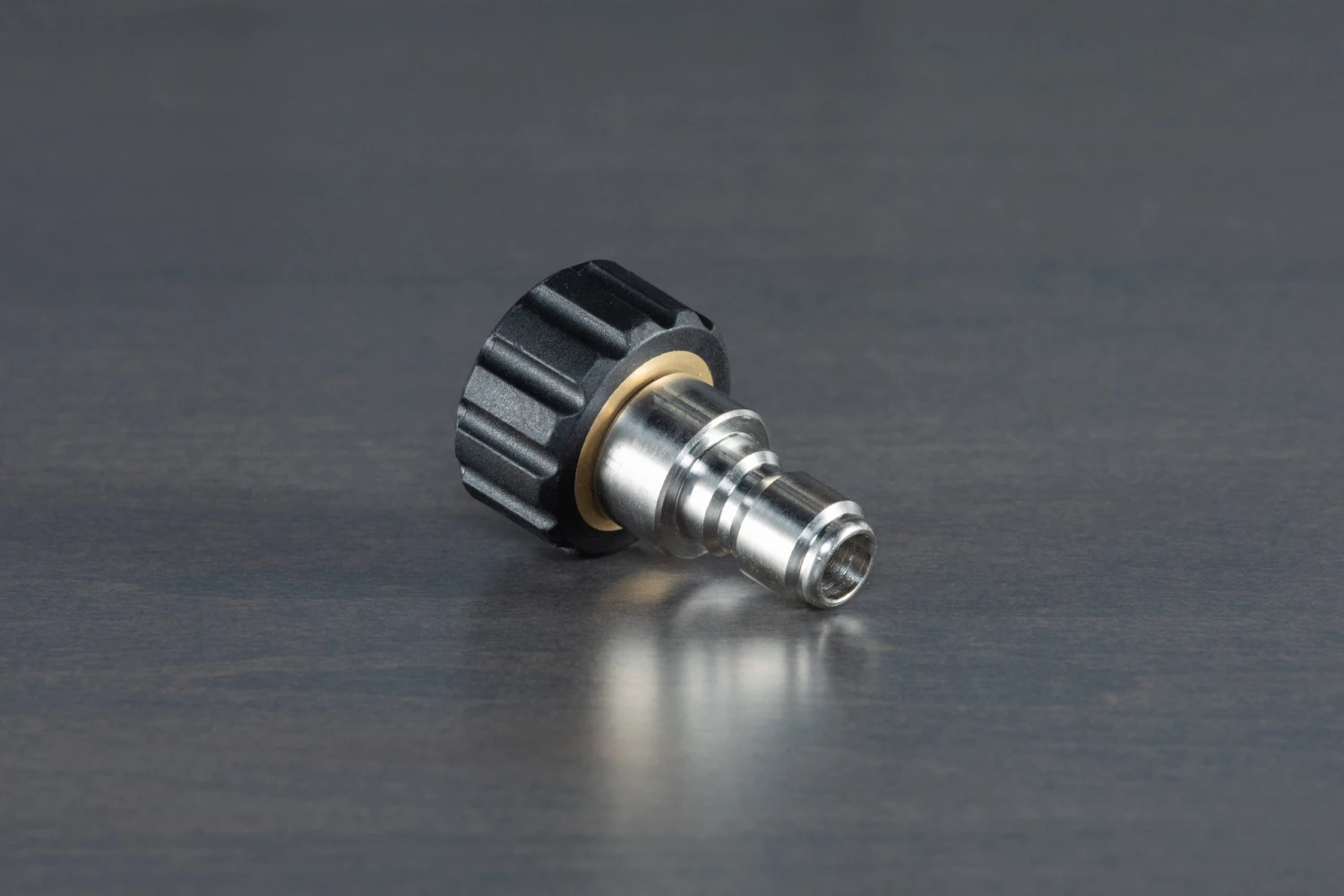

Stainless Steel M22 Female (14mm) To 3/8″ QD Plug

This is different from our original plug as this one has a stainless plug on it rather than zinc. The threads on this piece are brass, like the original.

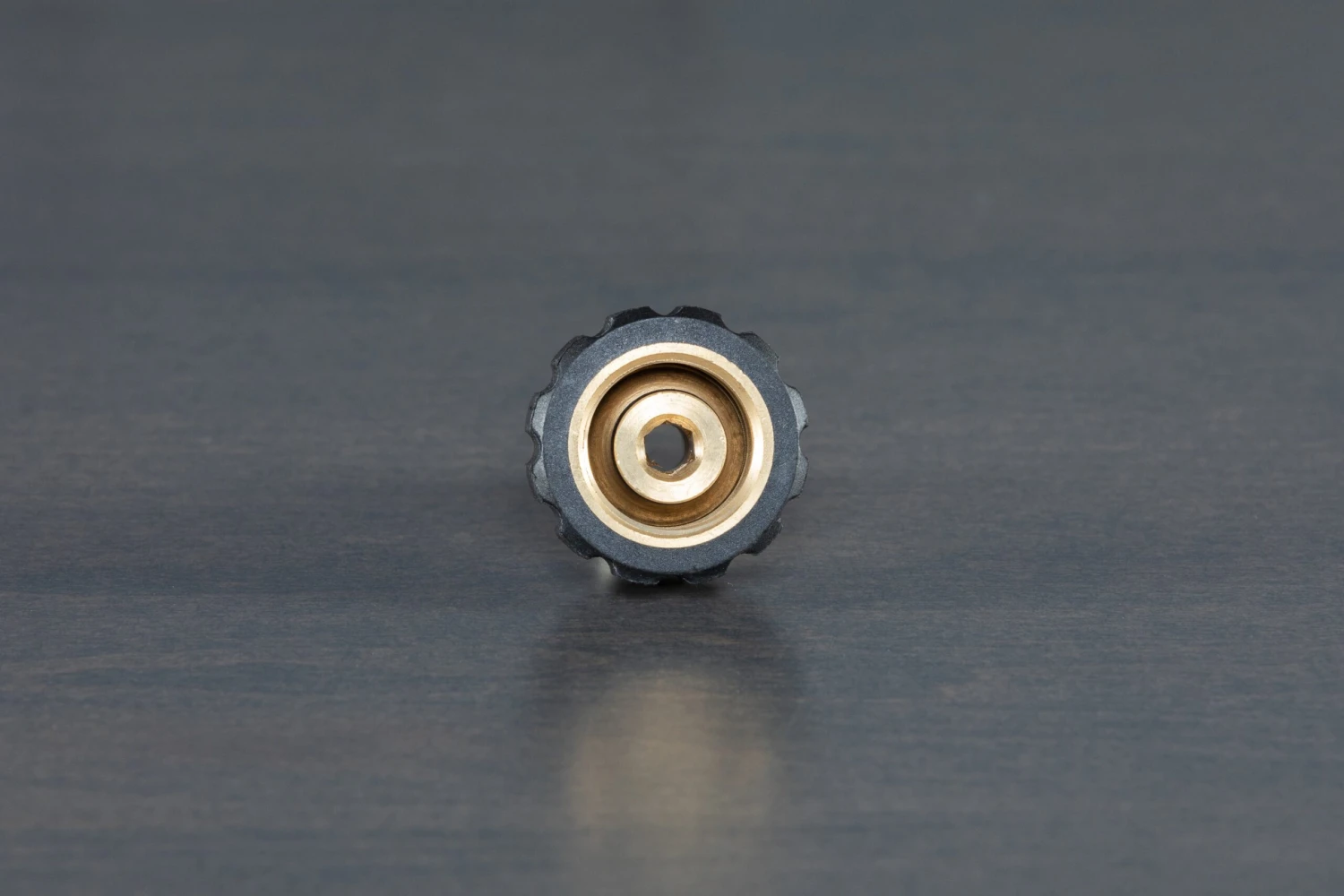

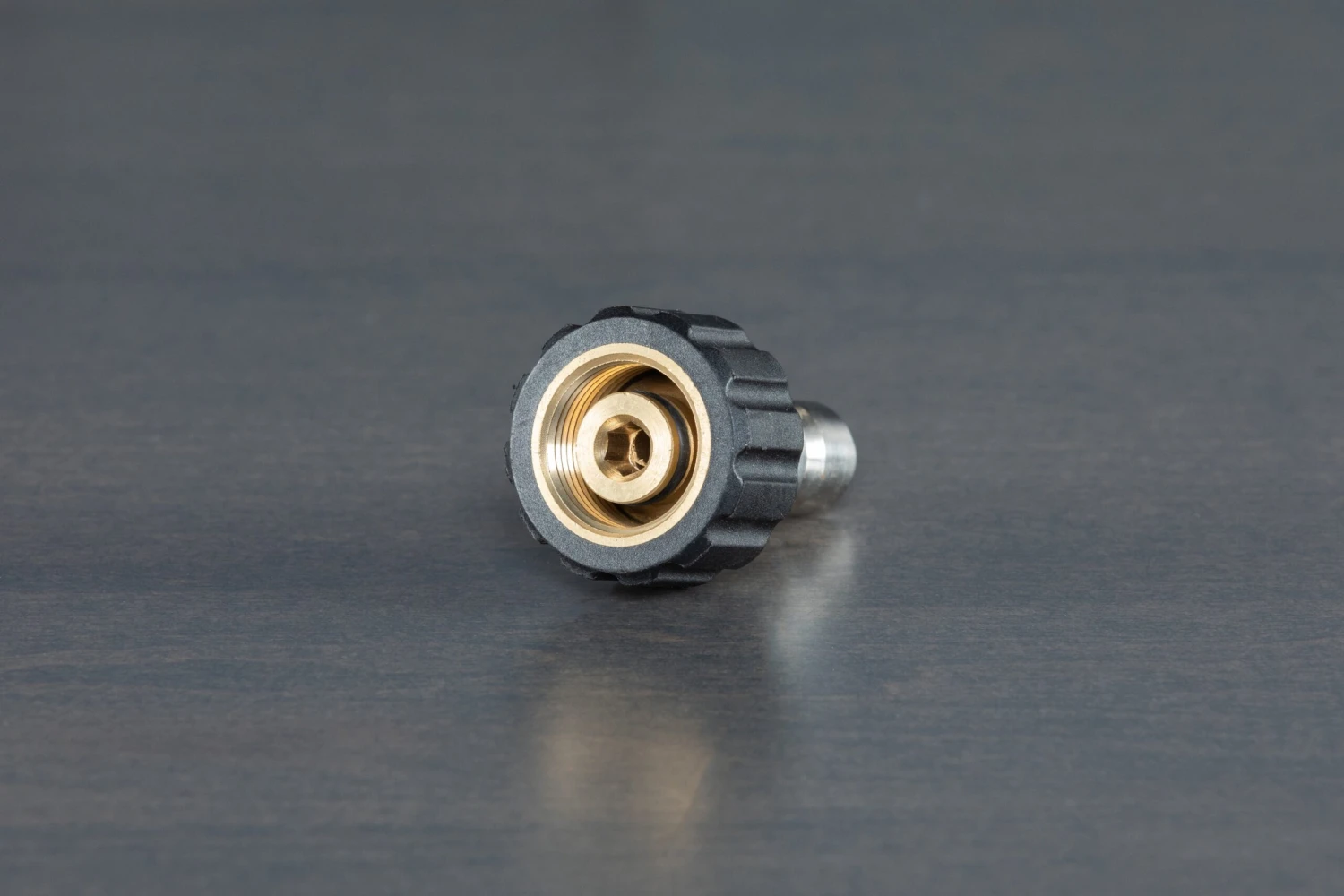

• Inlet = M22 14mm Threaded Female:  This threads onto a male M22 threaded connection.
• Outlet = 3/8″ Male Plug:  This 3/8″ plug would connect to a 3/8″ Coupler.

Connection Flow:

Kranzle K1122TST Hose Outlet -> Twist & Seal M22 X 3/8″ Male Plug -> 3/8″ Female QD Coupler ->  OE Kranzle Gun Inlet ->  M22 (14mm) Female to 3/8″ Plug

or

Kranzle K1322TS or K1622TS Outlet ->  M22 (14mm) Female to 3/8″ Plug ->  3/8″ Female Coupler -> High-Pressure Hose

*Think… Water Coming Into Water Going Out



M22 14mm Is Compatible with the following pressure washers (Active 2.0, Kranzle, AR Blue Pro line, Karcher, Ryobi, Green Works)
