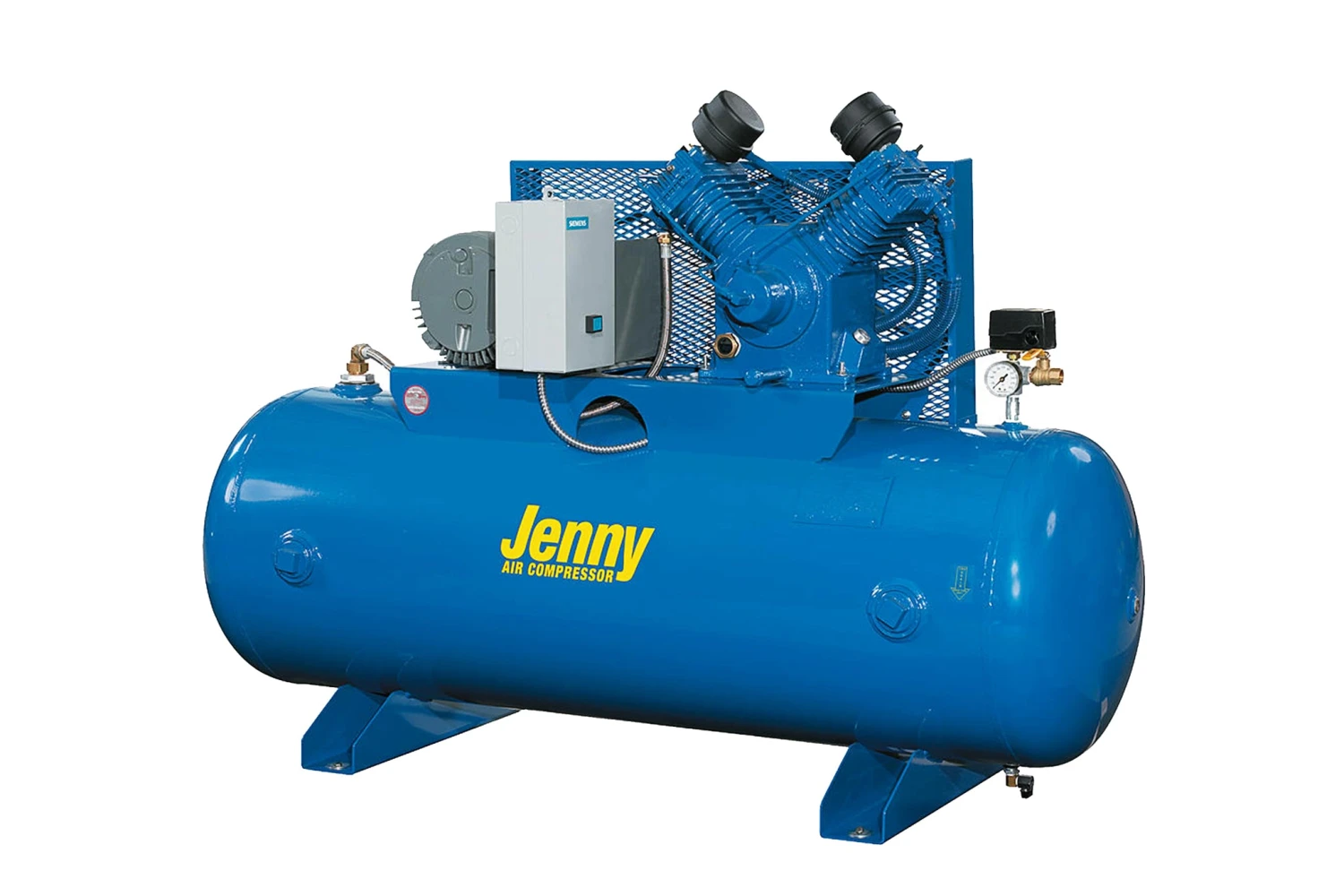

Jenny J5A-60 5HP 60 Gallon Single Stage Air Compressor

Standard Features:

• Heavy-duty single stage cast iron compressor pump – Made in Somerset, PA USA
• Wired for 230V, Single Phase Power
• Splash lubricated
• Belt driven with a large flywheel for extra cooling and easier start-up
• Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
• Directional air shroud for reduced pump temperatures
• Totally enclosed heavy-duty belt guard
• Tanks are powder coated and ASME certified
• 60 gallon tanks and larger are ASME National Board certified
• Protectively mounted fittings
• Manual tank drain(s)
• Large canister intake filter with replaceable filter elements
• Special unloading valves to assist in motor starting
• Tank gauge
• Pressure relief safety valve
• Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
• Magnetic starter is included on all 5HP and larger units
• Industrial/Commercial grade UL Listed electric motor
• Thermal overload motor protection

Manuals:

• J5A-60

• J5A-60V
