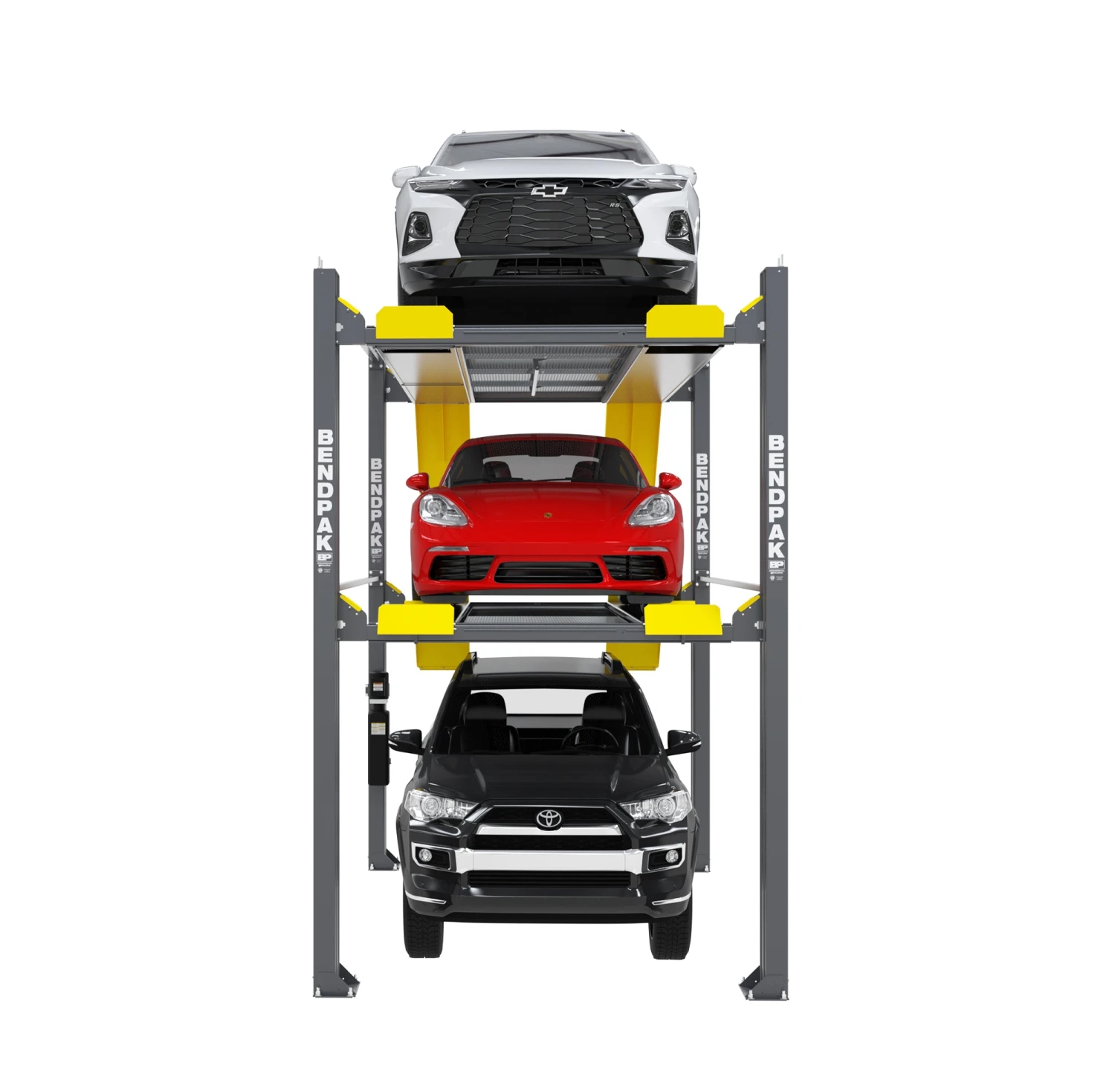

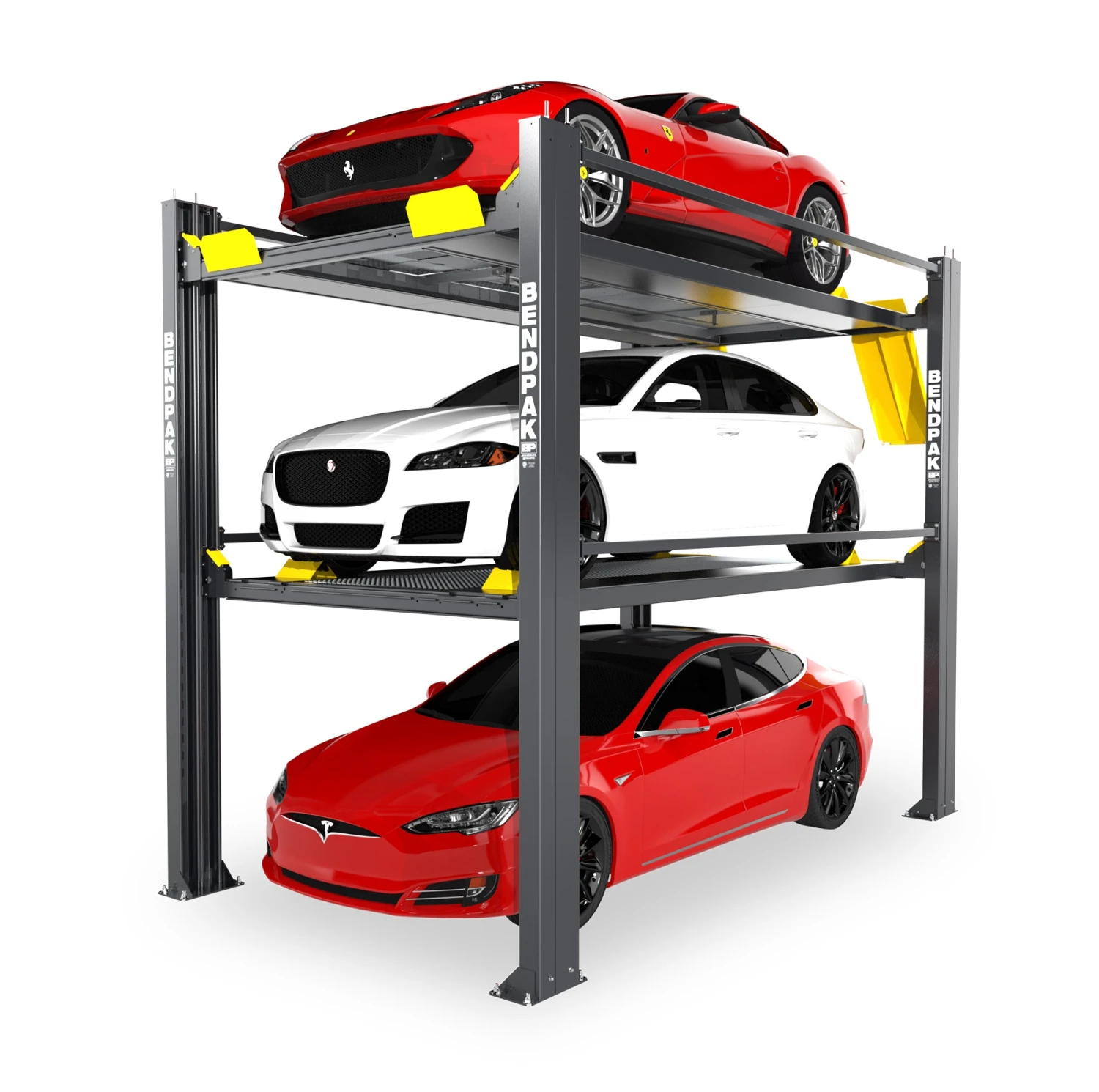

BendPak HD-973P Tri Level Parking Lift

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they’re available. The HD-973P is for those that have tall ceilings looking to put a triple lift in their garage or shop. Each platform operates independently of each other so you can set each platform at a custom height.

Features & Specifications

• Features
  • Perfect for parking, storage and service
  • 7,000 lb. capacity upper deck
  • 9,000 lb. capacity lower deck
  • Superstructure features durable powder coat finish
  • Perfect for cars, trucks, and SUVs
  • Platforms feature full-length aluminum decking
  • Rugged welded-steel construction
  • Powerful hydraulic cylinders
  • Heavy-duty 3/8” lifting cable
  • Heavy-duty steel construction
  • Wide base-plate for maximum stability
  • Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
  • Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
  • Reliable electric-hydraulic power system
  • Multi-position safety locks in each column
  • Automatic safety locks combined with redundant anti-fall devices
  • Adjustable lock ladders
  • Independent backup slack-cable safety latches
  • Push-button pneumatic safety release.
  • Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
  • Simple controls
  • Optional drive-thru ramps available
  • Optional 4,500-lb. air-hydraulic rolling jacks available
• Specs

• Top Platform

  • Lifting Capacity* 7,000 lbs. (3,175 kg)
  • *Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
  • *Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
  • A – Overall Width 112″ (2,849 mm)
  • B – Overall Length 242″ (6,139 mm)
  • C – Height of Columns 161″ (4,093 mm)
  • D – Drive-thru Clearance 87″ (2,201 mm)
  • E – Maximum Rise 139.5″ (3,544 mm)
  • F – Maximum Lifting Height 144″ (3,6​67 mm)
  • G – Distance Between Columns 100″ (2,546 mm)
  • H – Runway Width 19″ (482 mm)
  • I – Width Between Runways 44″ (1,121 mm)
  • J – Runway Length 188.5″ (4,786 mm)
  • Min. Wheelbase @ rated Capacity¹ 135″ (3,429 mm)
  • Min. Wheelbase @ 75% Capacity¹ 115″ (2,921 mm)
  • Min. Wheelbase @ 50% Capacity¹ 95″ (2,413 mm)
  • Min. Wheelbase @ 25% Capacity¹ 80″ (2,032 mm)
  • Locking Positions 31
  • Locking Spacing Every 4″ (102 mm)
  • Lifting Time to Max. Rise 90 seconds
  • Lifting Time to Max. Rise 90 seconds

• Bottom Platform

  • Lifting Capacity* 9,000 lbs. (4,082 kg)
  • *Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
  • *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
  • Min. Wheelbase @ rated Capacity¹ 125″ (3,175 mm)
  • Min. Wheelbase @ 75% Capacity¹ 110″ (2,​794 mm)
  • Min. Wheelbase @ 50% Capacity¹ 90″ (2,​289 mm)
  • Min. Wheelbase @ 25% Capacity¹ 7​5″ (1,​905 mm)
  • Locking Positions 13
  • Locking Spacing Every 4″ (102 mm)
  • Lifting Time to Max. Rise 50 seconds
  • Motor 220 VAC / 60 Hz / 1 Ph

¹The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95″ is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).

Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
