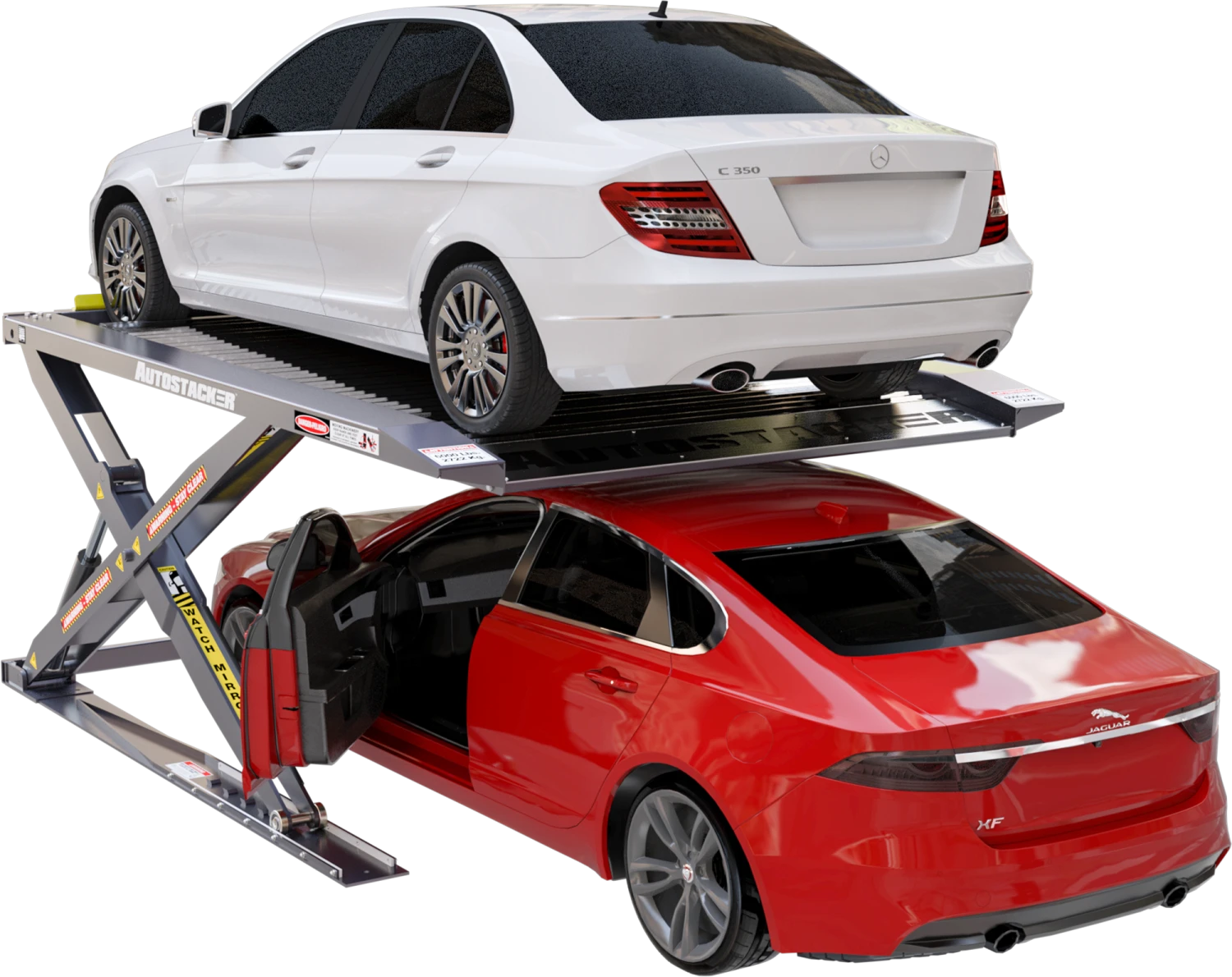

BendPak A6W Autostacker Parking Lift

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they’re available. The A6W Autostacker is perfect for those who want a 2 car storage solution with a little bit of extra width. The wide version offers an extra 8 inches of interior space to allow for more room to open car doors without having to squeeze out. The A6W can support up to 6000lbs and at max height has an underneath clearance of 75″. You will need a 220v outlet for this lift.

Features & Specifications

• Features
  • 2,721-kg. lifting capacity
  • Extra-wide construction for increased door clearance
  • Key‐switch disconnect fully disables operation for enhanced security
  • Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
  • Accommodates cars, light trucks and SUVs
  • Rugged, welded‐steel construction is strong and durable
  • 100% hot‐dipped, galvanized steel platform
  • Attractive slate gray, baked‐on powder coat finish provides added toughness
  • Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
  • Extra-wide, gradual sloping platform reduces entry ramp height
  • Automatic safety locks engage at five different parking heights

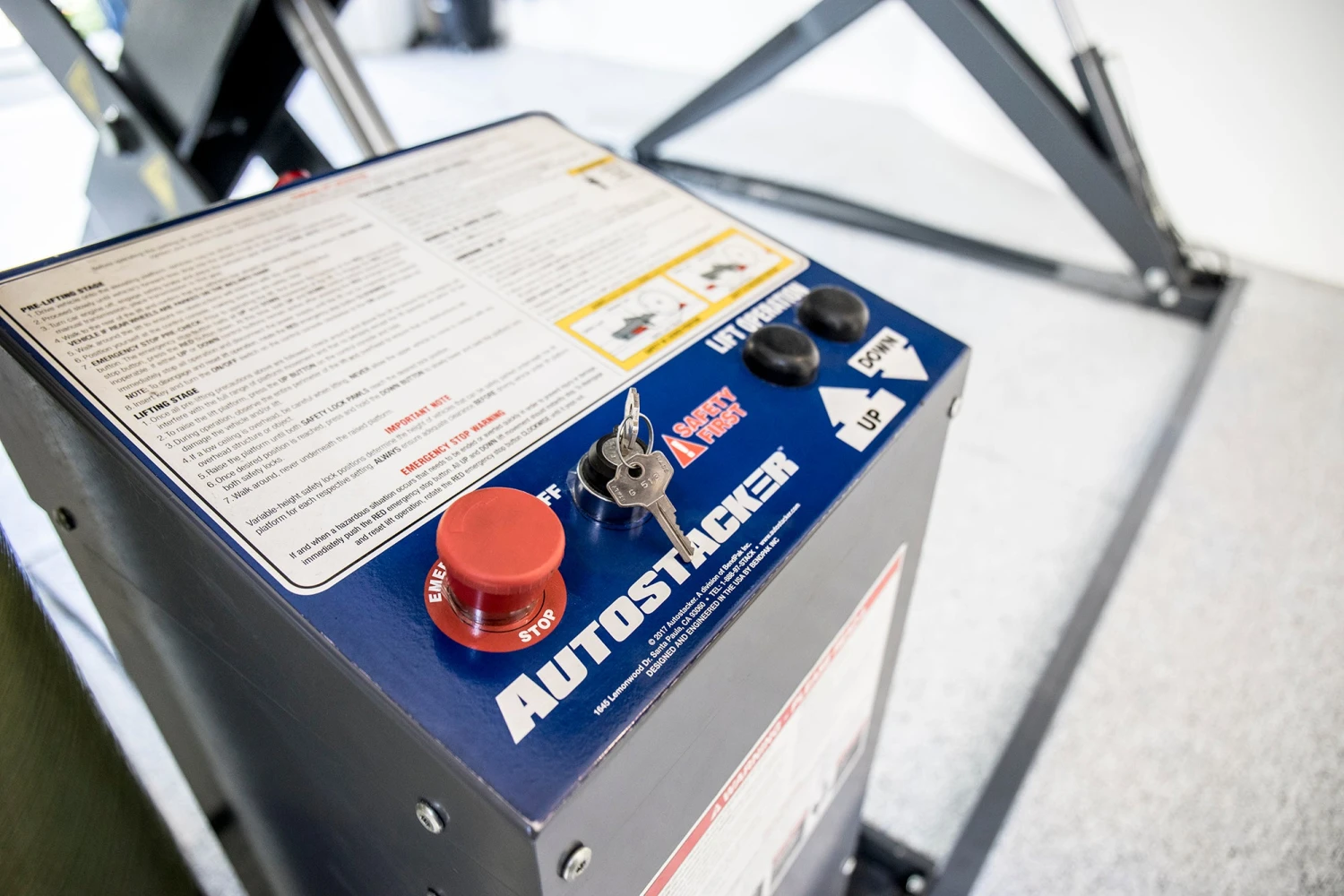

  • Simple push‐button controls

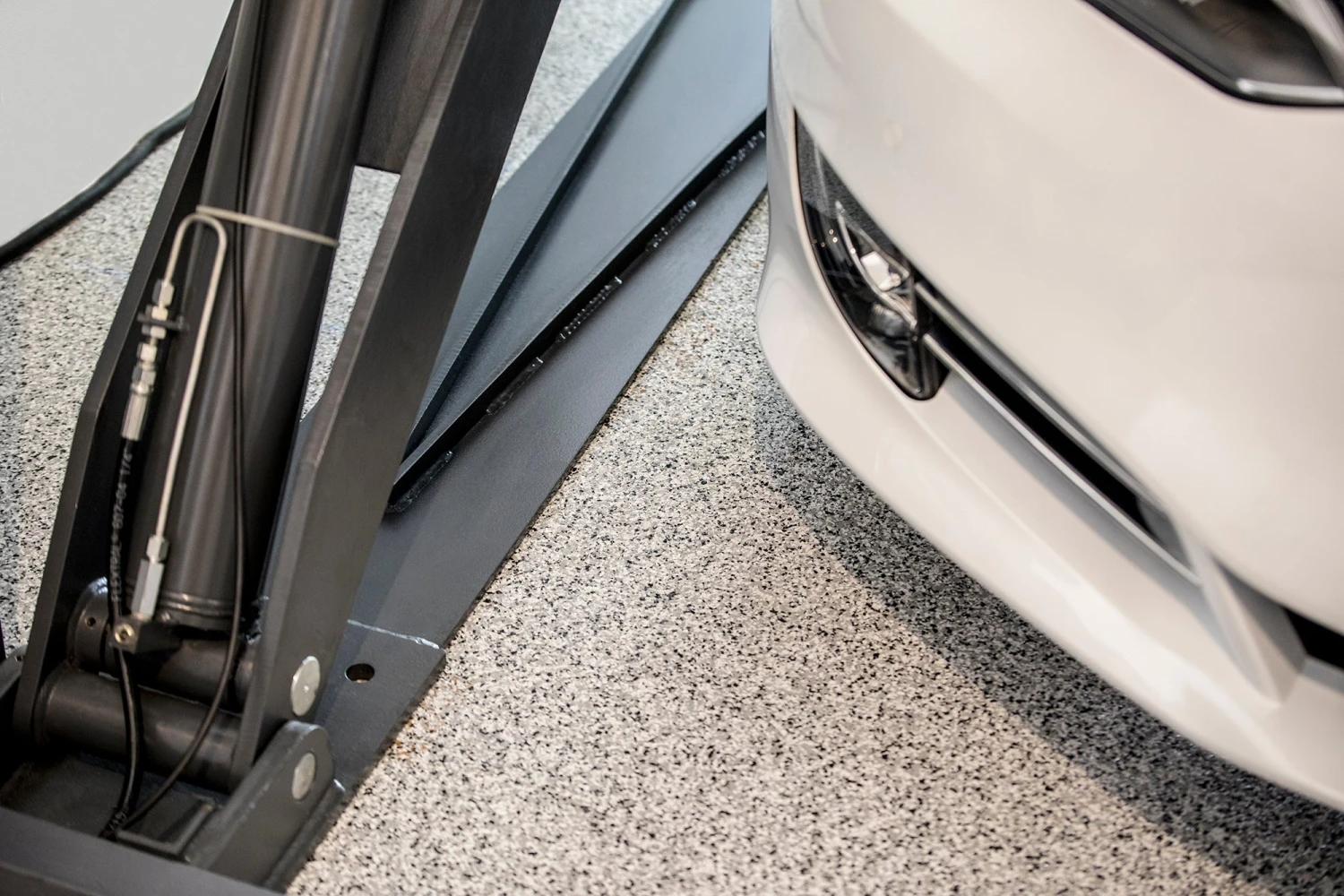

  • Dual, direct‐drive hydraulic lifting cylinders
  • Dependable hydraulic circuit that provides precise, equalized lifting
  • Variable height parking accommodates a wide range of vehicle and ceiling heights
  • Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
  • Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
  • Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
  • Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
  • Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
  • Patented asymmetric scissor arms provide greater underside door clearance
  • Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
  • Space‐saving design is perfect for commercial or residential applications
  • Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
  • UL Listed electrical components meet National Electrical Code (NEC) requirements
• Specs
  • Lifting Capacity: 6,000 lbs. (2,722 kg)
  • Overall width: 111” (2,815 mm)
  • Overall length: 144” (3,658 mm)
  • Platform length: 124” (3,150 mm)
  • Platform width: 91.75” (2,331 mm)
  • Platform height (forward): 13” (330 mm)
  • Ramp height (entry): 2” (51 mm)
  • Maximum underclearance: 80” (2,032 mm)
  • Under clearance on 1st lock (lowest): 52.5″ (1,331 mm)
  • Under clearance on 2nd lock: 60.75″ (1,543 mm)
  • Under clearance on 3rd lock: 68.5″ (1,736 mm)
  • Under clearance on 4th lock: 75″ (1,909 mm)
  • Under clearance on 5th lock (highest): 81.25″ (2,064 mm)
  • Motor: 208-240V, 50/60 Hz / 1 Ph
  • Recommended Power: 220V / 25A
  • Noise: 52 dB
  • Shipping weight: 3,350 lbs. (1,530 kg)
  • Shipping Dimensions: 144” x 28” x 30” (3,657 mm x 711 mm x 762 mm)
